Melt Spun Foil

Rapid solidification produces high purity foil that provides flexible application, consistent wetting and melting behaviour and structural stability over a wide range of temperatures.

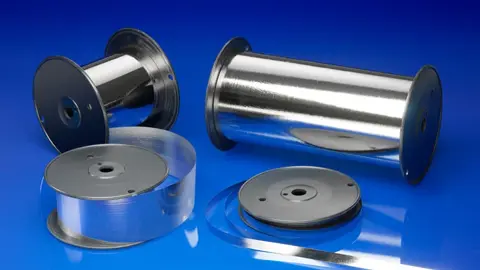

Rolls of metal brazing foil

Our rapidly solidified foil is available in strip and preform shapes. Widths from 3.8mm (0.15 inch) up to 280mm (11 inch) and thicknesses from 0.04mm (0.0015 inch) to 0.08mm (0.003 inch) are available depending on the alloy. The typical thickness is 0.05mm (0.002 inch) and a variety of compositions are available.

Melt-Spun Foil Properties

Name Nominal
Composition
Percent		 Liquidus Solidus Form Availability
°C °F °C °F
Icronibsi®-14 Ni – 87.8
Cr – 14.0
Fe – 4.5
Si – 4.5
B – 3.2
 1077 1970  977 1790 Foil, Preform
Nibsi®-M Ni – 92.8
Si – 5.6
Bi – 1.6		  1071 1960  993 1820 Foil, Preform
Nibco™-4 Ni – 93.3
Co – 20.0
Si – 4.0
B – 2.7
  1067 1953  988  1810 Foil, Preform
Nicro™-B Ni – 96.0
Cr – 15.2
B – 4.0
 1055 1930  1055  1930 Foil, Preform
Nibsi®-4 Ni – 92.3
Si – 4.5
B – 3.2		  1038 1900  982  1800 Foil, Preform
Icronibsi®-7 Ni – 89.3
Cr – 7.0
Si – 4.5
B – 3.2
Fe – 3.0		  999 1830 971 1780 Foil, Preform
Palnicro®-30 Ni – 67.6
Pd – 30.0
Cr – 10.5
B –2.4
  977 1790 941  1725 Foil, Preform
Palnicro®-36-M Ni – 60.0
Pd – 36.0
Cr – 10.5
B – 3.0
Si – 0.5
  960 1760 820  1508 Foil, Preform
Palnisi™-47 Ni – 47.2
Pd – 46.7
Si – 6.1
  851 1564 810 1490 Foil, Preform
Zn – Less than .001%
Cd– Less than .001%
Pb – Less than .002%
P - Less than .002%
C - Less than .005%		 Impurity limits – All other metallic impurities having a vapor pressure higher than 10-7 mm Hg at 500°C are limited to .002% each. Impurities having a vapor pressure lower than 10-7 mm Hg at 500°C are limited to a total of .050%. (Applicable to all forms except powder and extrudable paste).

For more information on our melt spun foil, contact us today.
